Transistors SCT055HU65G3AG HU3PAK Automotive Grade SIC Power MOSFET Transistors

Name: Transistors SCT055HU65G3AG HU3PAK Automotive Grade SIC Power MOSFET Transistors
Brand: Original Factory
Price: 1 USD

Brand Name : Original Factory

Model Number : SCT055HU65G3AG

Certification : Lead free / RoHS Compliant

Place of Origin : CN

MOQ : 10

Price : Contact for Sample

Payment Terms : T/T, L/C, Western Union

Delivery Time : 5-8 work days

Packaging Details : TO-247-3

Part Number : SCT055HU65G3AG

Fall Time : 12.1 ns

Rise Time : 7.9 ns

Transistor Type : 1 N-Channel

Total power dissipation at TC = 25 °C : 185W

Drain current (continuous) at TC = 100 °C : 30A

Contact Now

Transistors SCT055HU65G3AG HU3PAK Automotive Grade SIC Power MOSFET Transistors

Product Description Of SCT055HU65G3AG

SCT055HU65G3AG is Automotive-grade silicon carbide Power MOSFET Transistors, 650V, 58mΩ typ., 30A in an HU3PAK package.

Specification Of SCT055HU65G3AG

Part Number:	SCT055HU65G3AG
Package / Case:	HU3PAK-7
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	650 V
Id - Continuous Drain Current:	30 A
Rds On - Drain-Source Resistance:	72 mOhms
Vgs - Gate-Source Voltage:	- 10 V, + 22 V
Vgs th - Gate-Source Threshold Voltage:	4.2 V
Qg - Gate Charge:	29 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	185 W
Channel Mode:	Enhancement

Features Of SCT055HU65G3AG

Drain-source voltage: 650V
Drain current (pulsed): 132A
High speed switching performances
Very fast and robust intrinsic body diode
Source sensing pin for increased efficiency
Very low RDS(on) over the entire temperature range

Other Electronic Components In Stock

Part Number	Package
IHW15N120R3	TO-247
MB90F462AP	TO-247
FDS6930B	SOP8
HCPL-2631-500E	SOP-8
HIP4082IBZT	SOP16
TLC0838CDWR	SOP20

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.

Wholesale Transistors SCT055HU65G3AG HU3PAK Automotive Grade SIC Power MOSFET Transistors from china suppliers

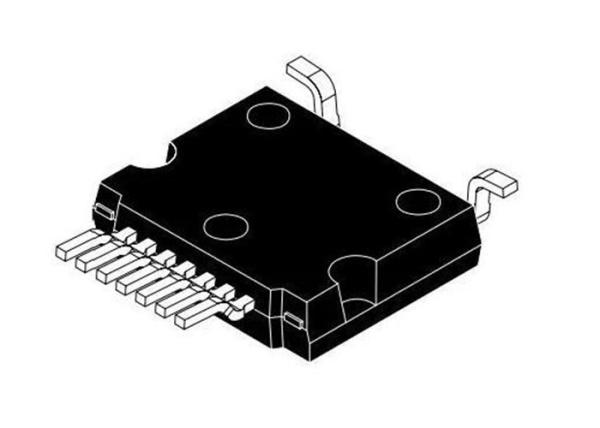

Transistors SCT055HU65G3AG HU3PAK Automotive Grade SIC Power MOSFET Transistors Images
